DIN Surge

DTB Series

UL1449 Listed Edition 4 Type 1CA. DTB provides many of the same benefits as the DTA series but, is specifically designed to fit within the parameters of IEC Class II environments. The DTB allows the system designer to effectively coordinate protection while keeping total project costs in check.

SPECIFICATION

DTE Series

UL1449 Listed Edition 4 Type 1CA. DTE is the next evolution of the legendary FDS Series. Enhanced with patented Frequency Discriminating (FD) technology, the DTE continues to function at a high level, even after sustained and abnormal over-voltage events.

SPECIFICATION

DTA Series

UL1449 Listed Edition 4 Type 1CA. Complies with: EN 61643-11 Type 1 & 2 IEC® 61643-11 Class I, Class II. Lowest possible VPR combined with a robust high peak surge current rating. All versions of the DT series feature hot swappable modules.

SPECIFICATION

FDF Filters

Sensitive Process Controls, Switched Mode Power Supplies [PLC, SCADA, Lighting, Motor], High Performance Surge and Noise Filtering, Reduced Rate of Rise w/Residual Voltage, Etc.

SPECIFICATION

FDS Multiphase

3 Phase Control & Distribution Cabinets, With or Without Neutral, 35mm DIN Rail Mounted, Power Free Status Indication, Etc.

SPECIFICATION

FDS21/22

Single Phase Control Cabinets, High Exposure Applications, Power Supplies, LED Displays, 35mm DIN Rail Mounted, Power Free Status Indication, Etc.

SPECIFICATION

FDS Compact

Single Phase Control Cabinets, 120-240V Power Supplies, Compact/Narrow Installations, 35mm DIN Rail Mounted, Power Free Status Indication, Etc.

SPECIFICATION

FDS Single Phase

Single Mode, Control Cabinets, 35mm DIN Rail Mounted, Power Free Status Indication, Etc.

SPECIFICATION

DTE Single Phase

The DTE Series provides a range of safety and performance features for the harshest environments and suitable for protection within a wide range of applications. Ensuring your equipment and systems are kept safe and operational through extreme abnormal voltage conditions.

SPECIFICATION

DTE Multiphase

The DTE Series provides a range of safety and performance features for the harshest environments and suitable for protection within a wide range of applications. Ensuring your equipment and systems are kept safe and operational through extreme abnormal voltage conditions.

SPECIFICATION

DTB Single Phase

Compact with a high peak, up to 50kA surge current rating and hot swappable modular design. Retaining clip ensures enhanced vibration and shock resistance performance. The DTB Series provides a full range of safety and performance features for the harshest environments and is suitable for a wide range of applications.

SPECIFICATION

DTB Multiphase

Compact with a high peak, up to 50kA surge current rating and hot swappable modular design. Retaining clip ensures enhanced vibration and shock resistance performance. The DTB Series provides a full range of safety and performance features for the harshest environments and is suitable for a wide range of applications.

SPECIFICATION

DTA Single Phase

The DIN Rail mounted DTA family of SPDs provide reliable and efficient protection against voltage transients within the UL1449 Type 1 & 2 environments. The DTA Series provides a full range of safety and performance features for the harshest environments and is suitable for a wide range of applications.

SPECIFICATION

DTA Multiphase

The DIN Rail mounted DTA family of SPDs provide reliable and efficient protection against voltage transients within the UL1449 Type 1 & 2 environments. The DTA Series provides a full range of safety and performance features for the harshest environments and is suitable for a wide range of applications.

SPECIFICATION

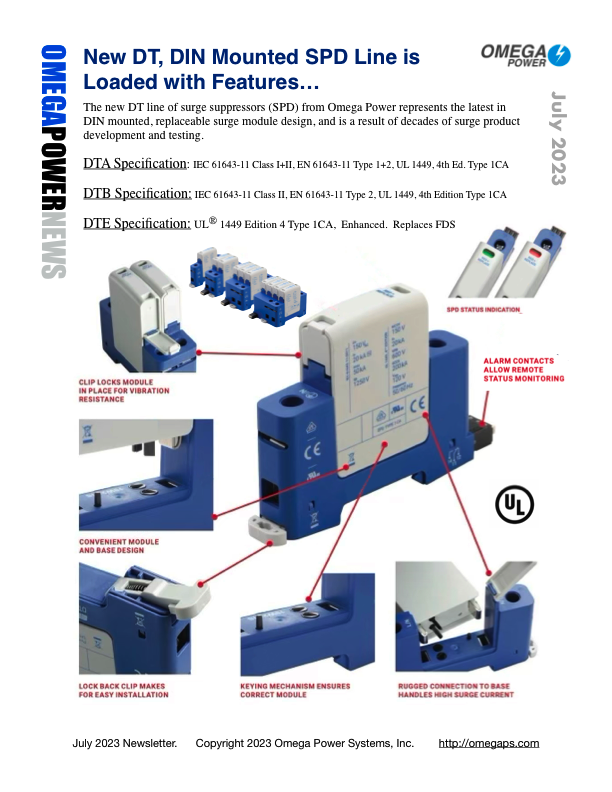

OMEGAPOWERNEWS

July 2021

June 2021

Get the App…

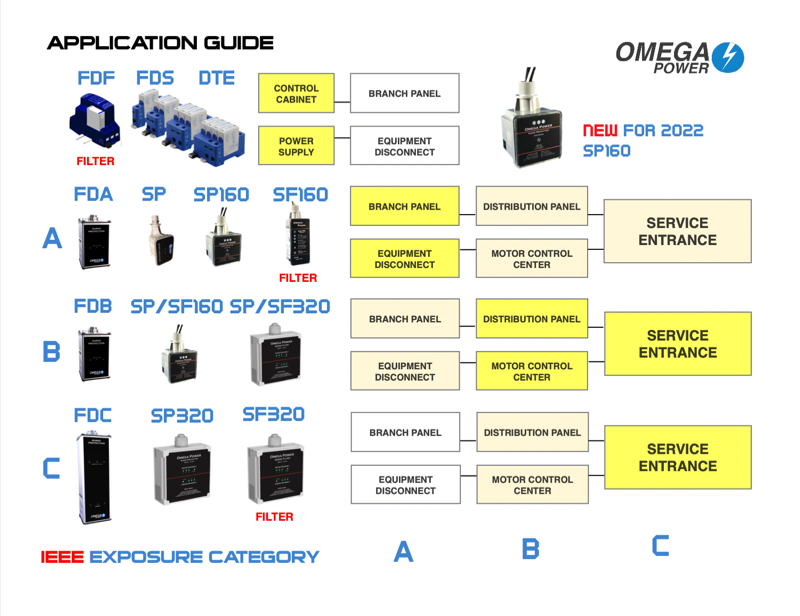

Application Guide
