Application Guide
A Series
Compact Panel Suppressor for branch Panels, Large Equipment Disconnects, Sub Panels, Small Service Entrances, Distribution Switchgear, Residential Panels…
B Series
Compact Panel Suppressor for high Exposure Switchgear, Main Service Panels, Distribution Panels, Large Equipment Disconnects, Motor Control Centers, Rooftop Disconnects, Etc.
C Series
Compact Panel Suppressor for high Exposure Switchgear, Main Service Panels, Distribution Panels, Motor Control Centers, Automatic Transfer Switches [ATS], Built-In Backup SPD, Etc.

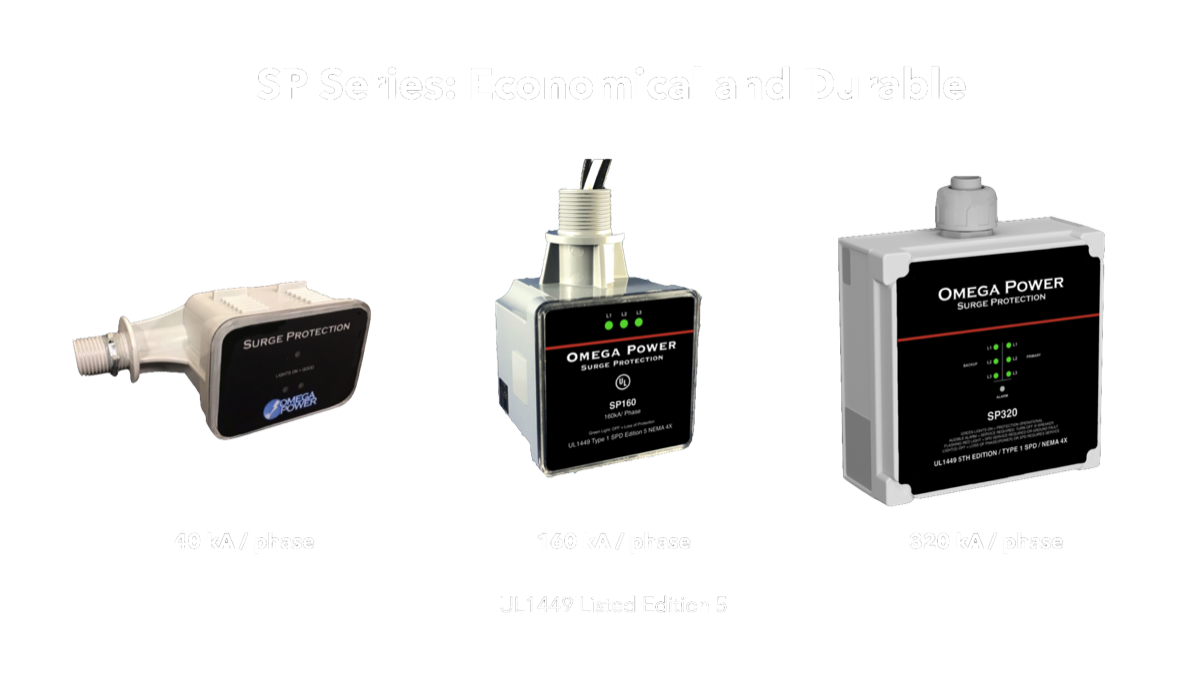

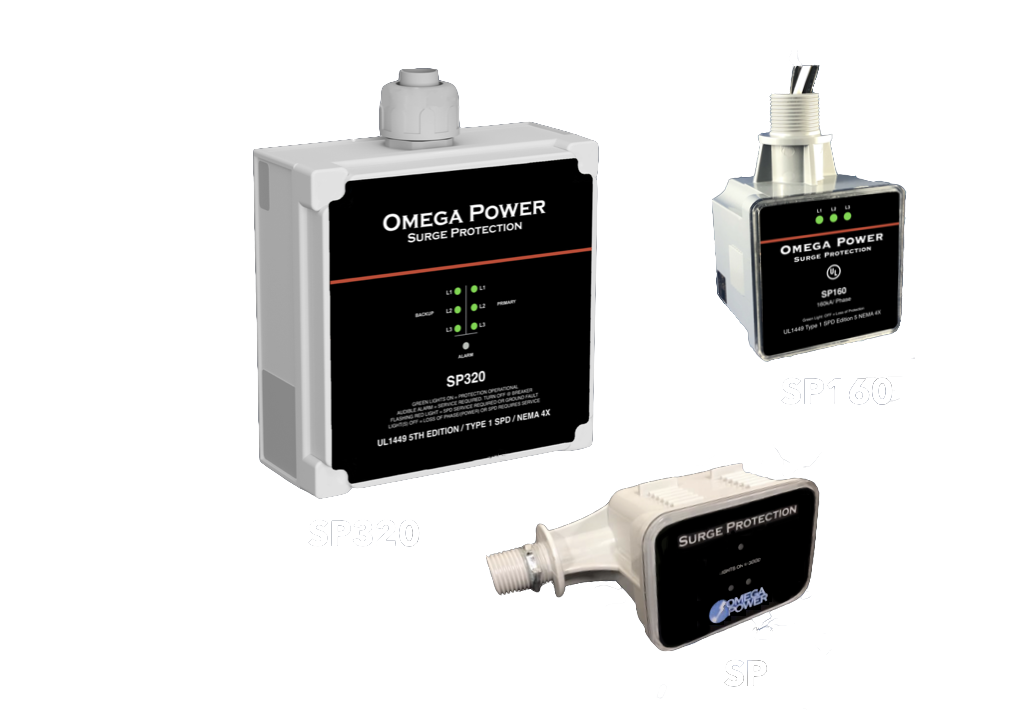

SP Series
Compact Panel Suppression for residential Panels, Small Service Entrances, Branch Panels, Rooftop Disconnects, UL508/OEM Applications, PV Solar Combiner Boxes, Etc.

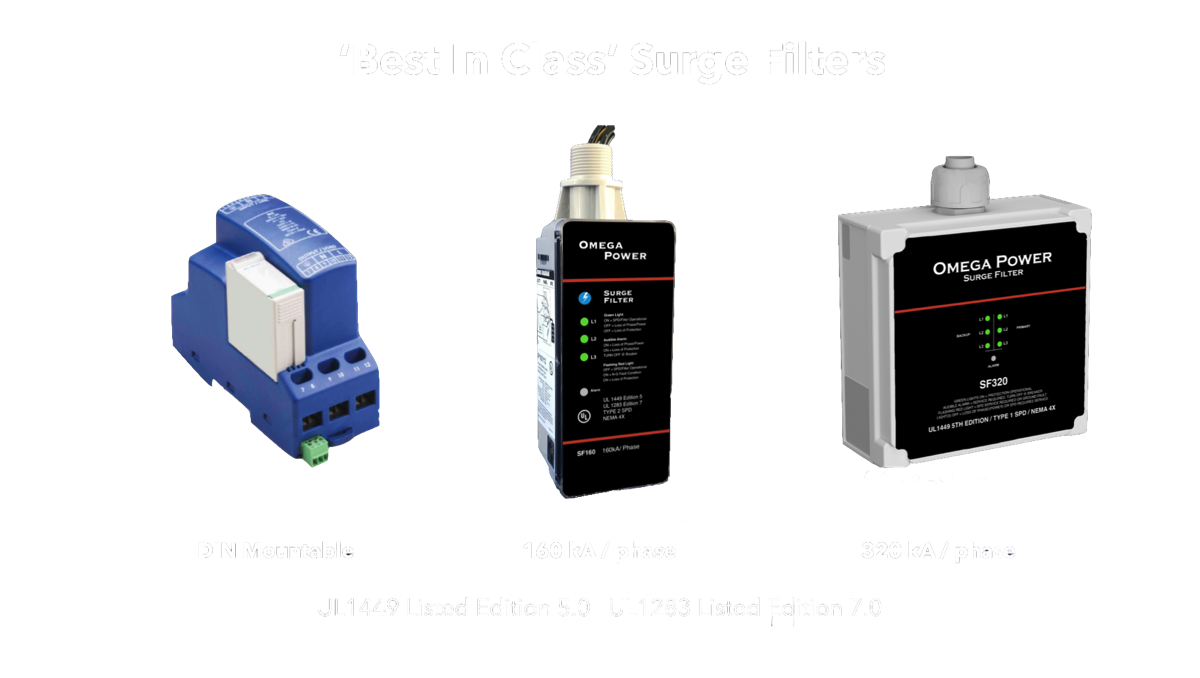

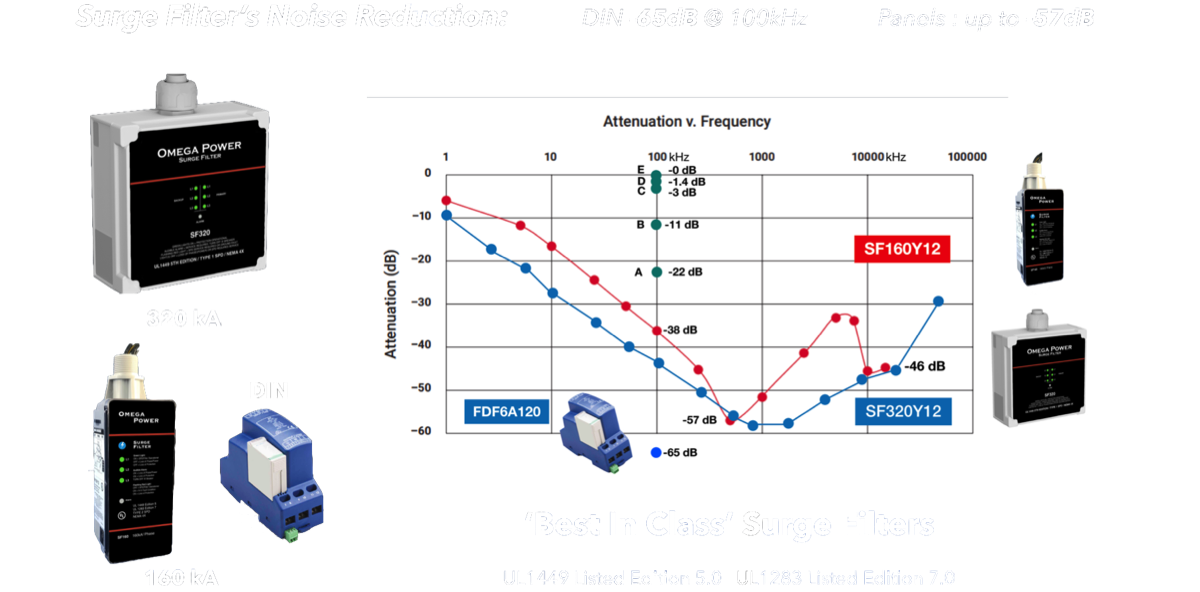

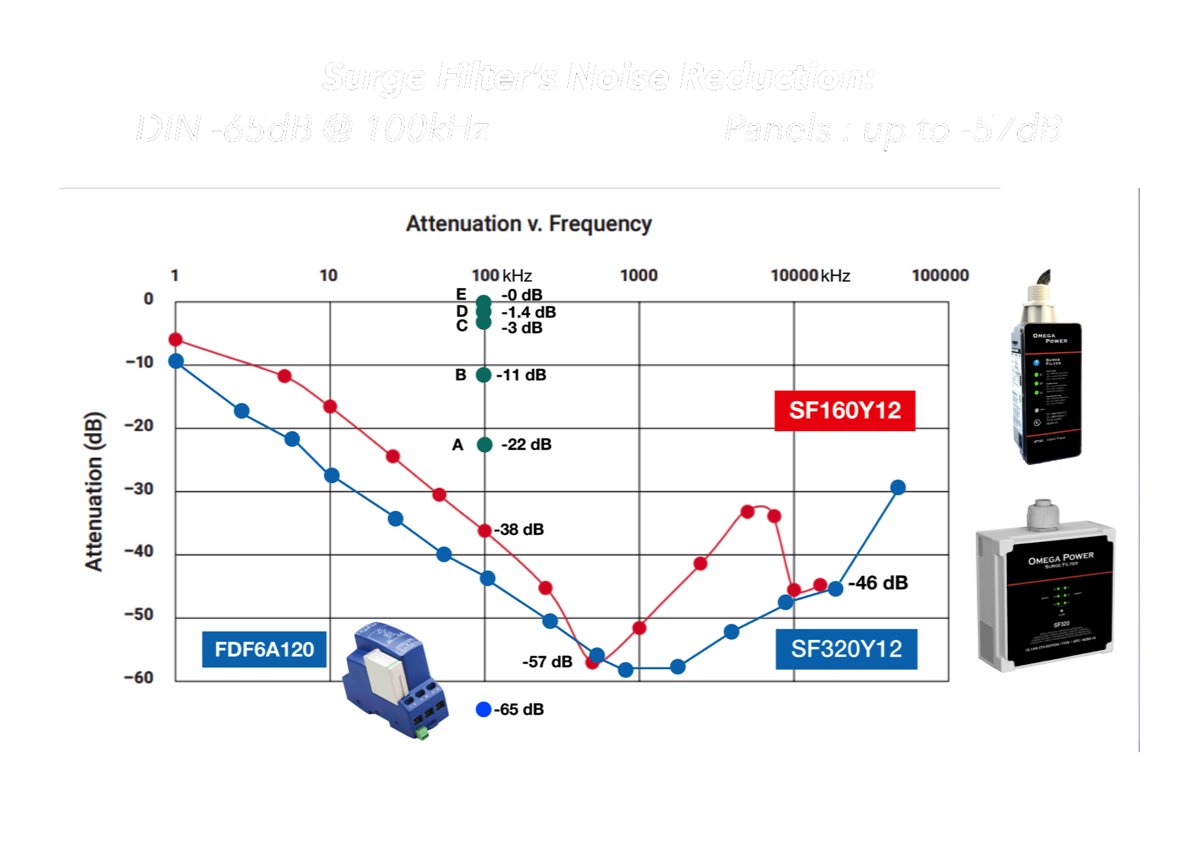

FDF Filters
Sensitive Process Controls, Switched Mode Power Supplies [PLC, SCADA, Lighting, Motor], High Performance Surge and Noise Filtering, Reduced Rate of Rise w/Residual Voltage, Etc.

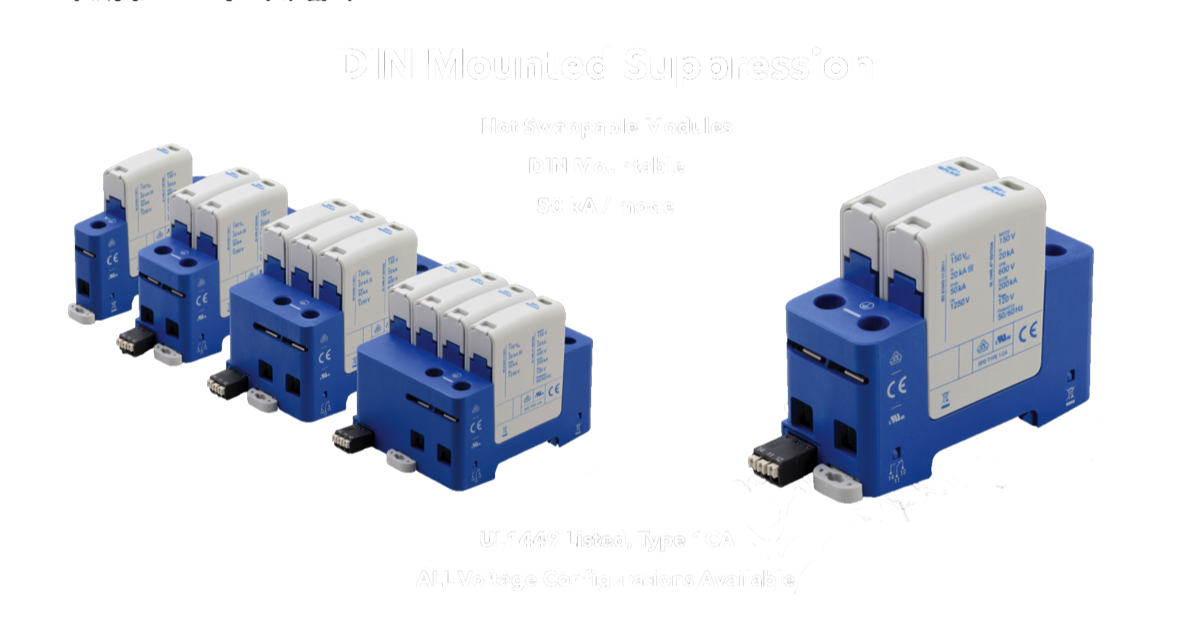

FDS21/22
Single Phase Control Cabinets, High Exposure Applications, Power Supplies, LED Displays, 35mm DIN Rail Mounted, Power Free Status Indication, Etc.
FDS Multiphase
3 Phase Control & Distribution Cabinets, With or Without Neutral, 35mm DIN Rail Mounted, Power Free Status Indication, Etc.
FDS Compact
Single Phase Control Cabinets, 120-240V Power Supplies, Compact/Narrow Installations, 35mm DIN Rail Mounted, Power Free Status Indication, Etc.
FDS Single Phase
Single Mode, Control Cabinets, 35mm DIN Rail Mounted, Power Free Status Indication, Etc.

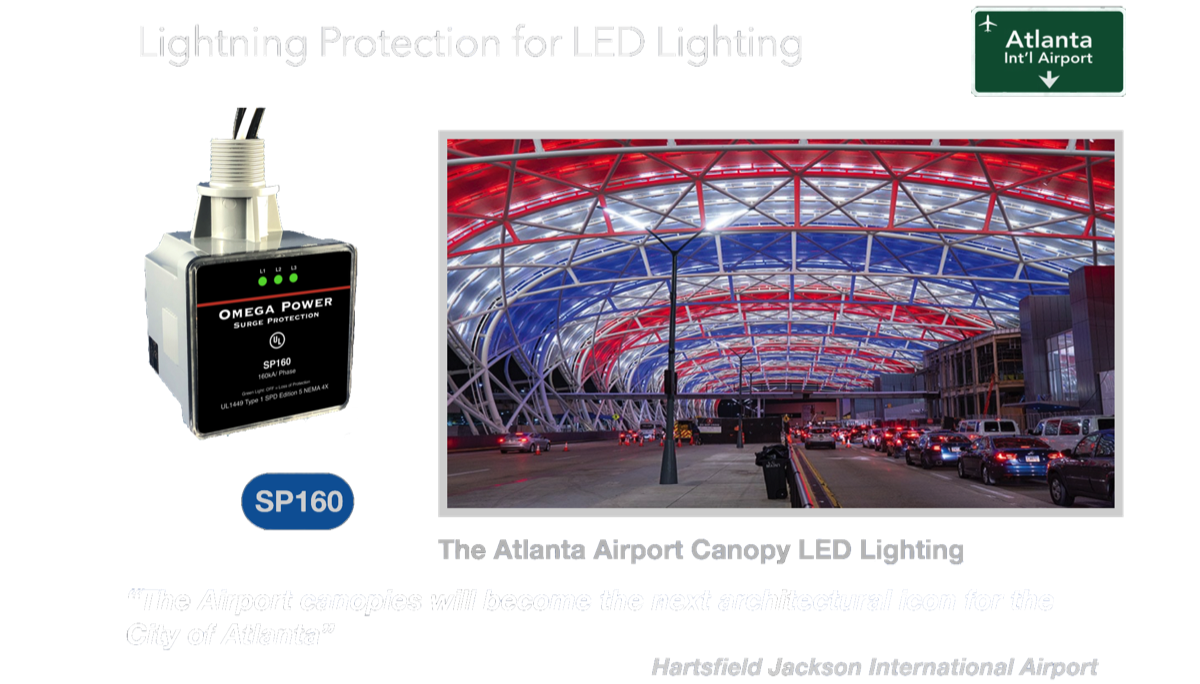

LP Series
Parking Lot Light Poles, Highway Light Poles, Other Outdoor Lighting Systems, Etc.
HVP240 Series
High Voltage Surge Protection commonly used to protect high voltage switchgear (MCC, MDP, etc), submersible pump motors (ESPs), large motor applications…
Potential Equalization Clamp
The Potential Equalization Clamp (PEC100) features a high peak current capacity of 100kA and is an isolation spark gap SPD that is designed to…
